The Meyn QGS (quality grading system) classifies the birds based on different types of characteristics in combination with its occurrence on the bird. The customer can determine the grade of each quality level per bird part and per typical defect. The destination of the bird is controlled by the M4000 based on quality and weight. The whole bird can be dropped in a certain bin or sent to a cut up line and a by-pass can be activated based on the quality and weight of the whole bird.
OPTIONS:

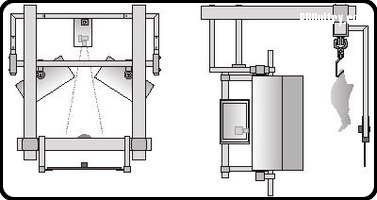

The Meyn Quality Grading System is designed for grading whole birds, hanging with two legs in a shackle. The system captures an image of the bird and inspects it on the presence of defects. The system can be used with only a front camera or a combination of front and back camera. If both a front and a back camera are installed, it does not matter in which order the cameras are placed, this can be defined in the software.
OPTIONS:
The Meyn Quality Grading System is designed for grading whole birds, hanging with two legs in a shackle. The system captures an image of the bird and inspects it on the presence of defects. The system can be used with only a front camera or a combination of front and back camera. If both a front and a back camera are installed, it does not matter in which order the cameras are placed, this can be defined in the software.

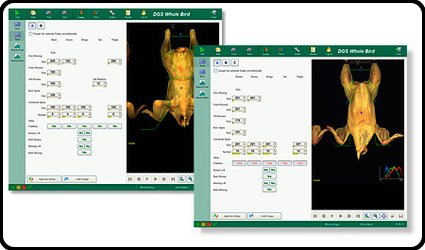

- The camera system recognises defects based on colour differences for whole birds
- A maximum of seven different grades can be defined, the whole bird is determined in one quality grade
- In combination with a M4000 control system, the destination of birds can be controlled based on quality and weight
- Statistics are recorded in a MBD file, which can be read using Microsoft
- Access data can be shown and saved per flock, the flock change can be done manually or based on predefined number per flock.
